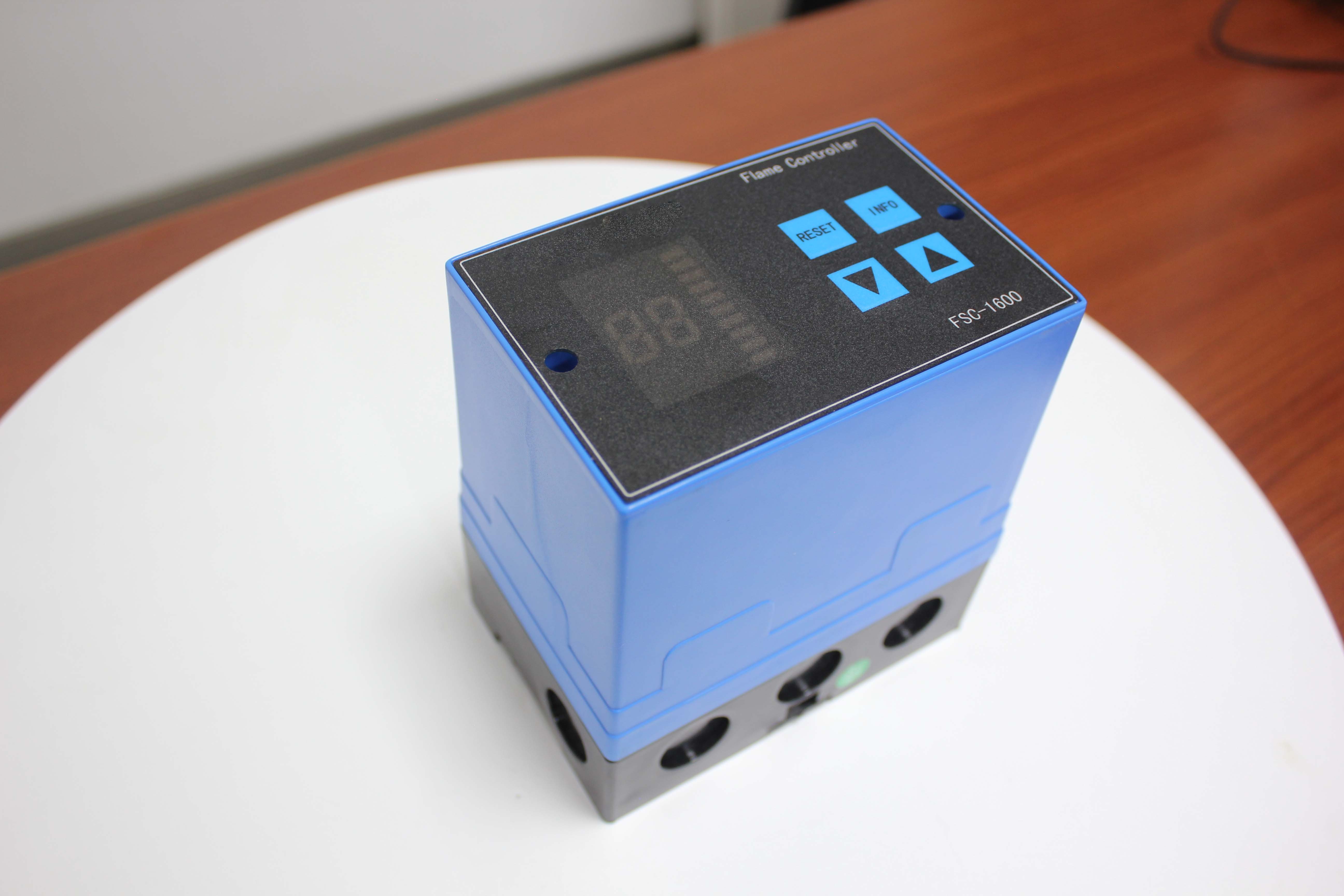

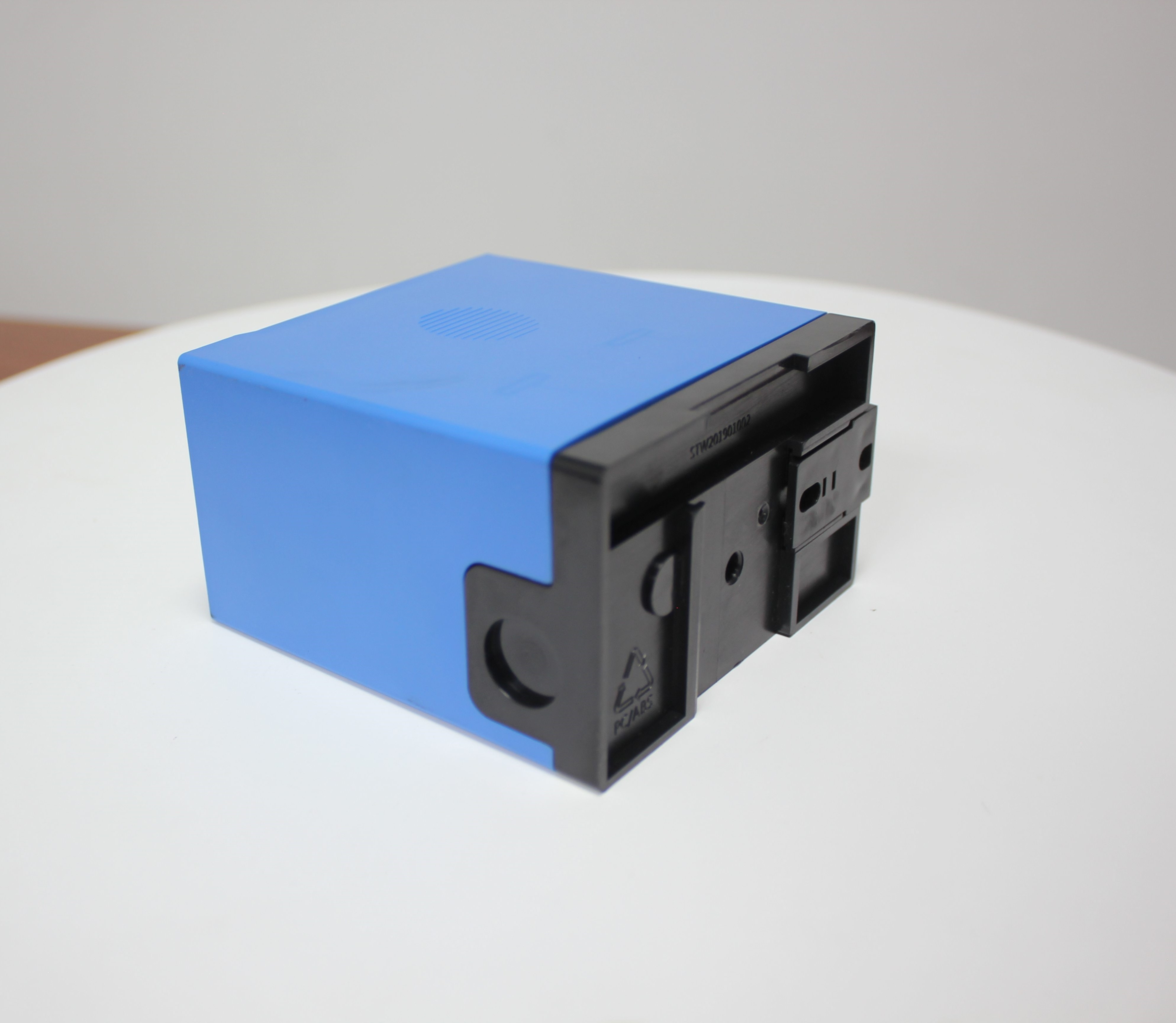

FSC-1600 is a high-performance combustion safety controller.It has high detection sensitivity and reliable safety control performance.With function of setting, multiple failure indications, starting up process and current flame threshold value display,which improves stability and control ability of operation. The light column shows the flame state to optimize the combustion efficiency. It is an ideal energy-saving product for reducing energy consumption and pollution.
FSC-1600 combustion controller can be applied to safety control of industry and commercial combustion system , Auto-ignition and flame detection for a variety of gas fuels and liquid fuel burners. Wide range of applications, can be used in steel, machinery, metallurgy, glass, ceramics, chemicals and many other industries.
Features:
*24 hours continuous operation, hundreds of thousands of operating lifetimes
* IP54 protection level, Apply to site or cabinet installation
* Operation status display, fault information display and frame intensity display
* Remote or on-site reset
* Flame threshold can be set
* Meet the European EN298 standard
|
tem
|
Technical parameters
|
|
Width*thickness*height
|
112*75*120mm
|
|
Input voltage
|
AC100~240V 50/60Hz
|
|
Lonic bar cable length
|
75m(maximum)
|
|
Flame threshold value
|
1μA(Minimal)
|
|
Protection level
|
IP54
|
|
Environment temperature
|
-20℃ ~ +65℃
|
|
Environment humidity
|
< 95%
|
|
Operating life
|
>100 thousand times
|
|
Shell material
|
PC/ABS Black (Wiring base color ) Blue (shell color )
|
|
The maximum current of driving the gas valve
|
1A ;Power factor:1
|
|
The maximum current of driving the ignition transformer
|
2A ;power factor:0.2
|
|
The maximum current of the output terminal
|
2A ;AC Voltage:250v
|
