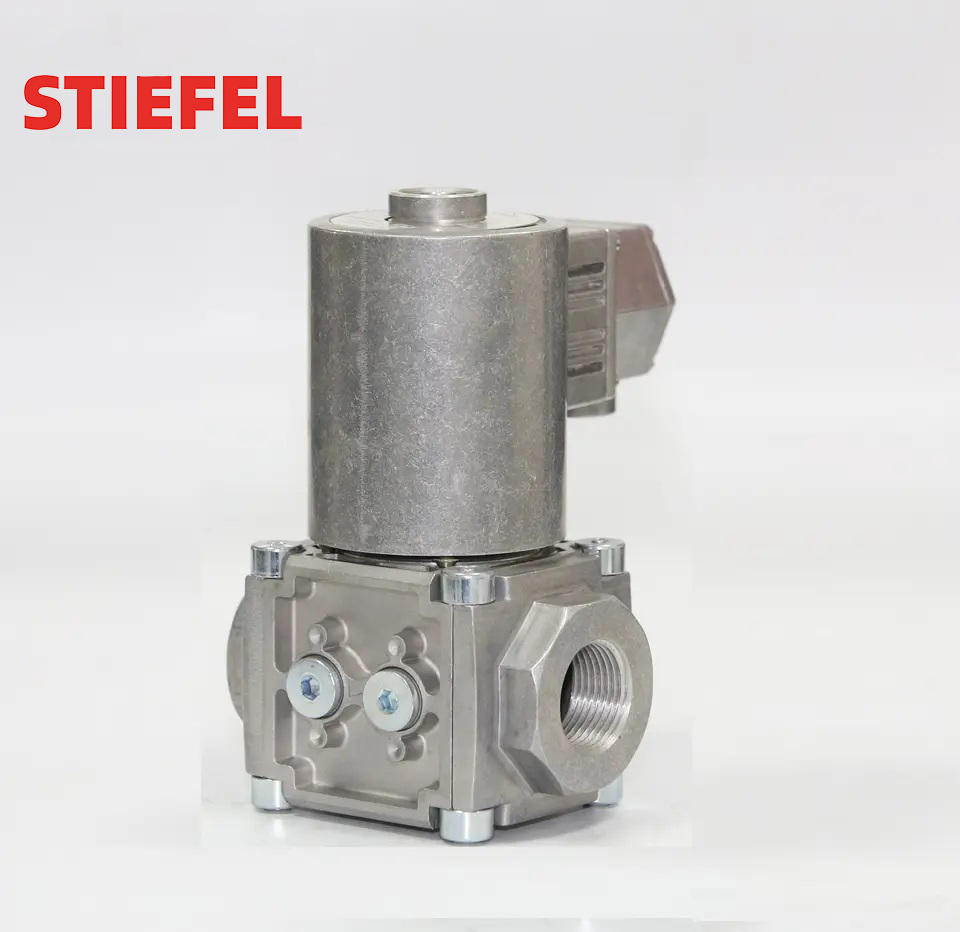

The DEVEC type valve is a fast opening solenoid valve that is normally closed, with explosion proof ability. When it’s not energized, the spring works on the disc keeping the passage closed; while it’s energized, the valve opens rapidly.

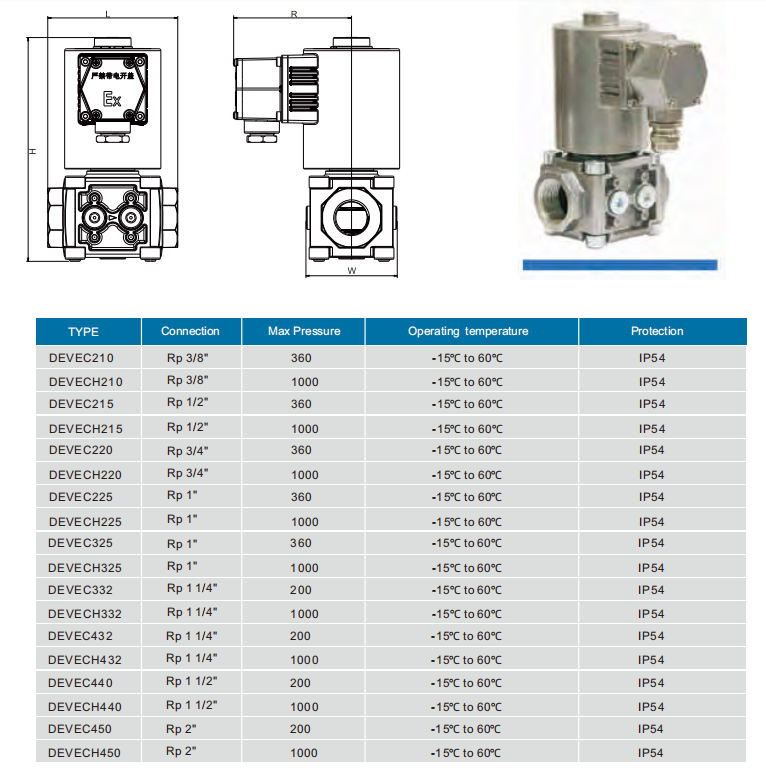

Technical data:
Opening time: less than 1s
Closing time: less than 1s
Max working frequency: 20/min
Protection level: Ip54
Sealing material: NBR
Body material: aluminum alloy
Working temperature: -15℃~60℃
Coil temperature: 65℃
Max working pressure: normal model - 360mbar
