| Product number | HD-Y280 | |||||
| Measuring range | -0.1~0~60MPa | |||||
| pressure type | Gauge pressure, absolute pressure, sealed gauge pressure | |||||
| overload capacity | <40MPa, 150%;>40MPa | |||||
| Accuracy class | 0.2% level | |||||
| long-term stability | 0.2%FS/Y | |||||
| supply voltage | 3V (2 AAA batteries) | |||||
| weight | About 440g (only the pressure gauge body) | |||||
| Battery Life | >6 months (subject to specific working conditions | |||||
| The frequency of grass-picking toilets | 3 times/second | |||||

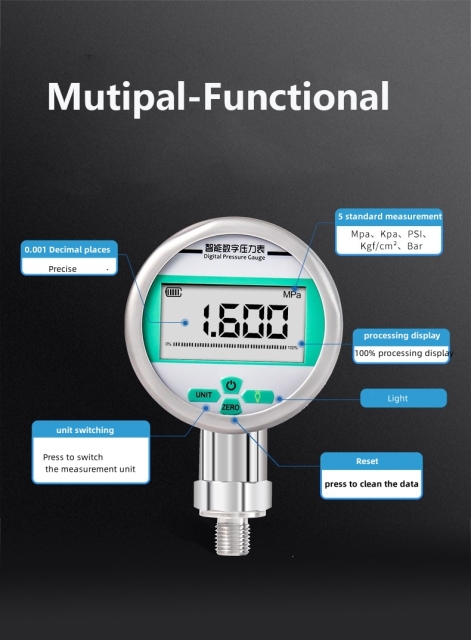

| display screen | LCD liquid crystal display | |||||
| Measuring medium | Air, water, oil and other non-corrosive media to stainless steel | |||||
| Case material | 304 stainless steel | |||||
| interface material | 304 stainless steel | |||||
